Cylinder regulator 0-10 bar Vulkan F10/2 200 Effect

Vulkan

Write a review

Gas Quality:

Outlet pressure:

Bar

Type of Gas:

Inlet Connection:

Outlet Connection:

Inlet pressure:

Bar

Material:

HP gauge scale:

Bar

Ask a question

CODE: 226200-001

Description
Features
View all variations as list

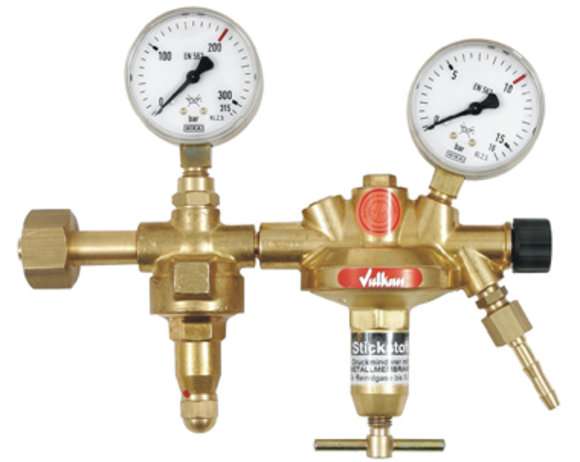

Vulkan F10/2 200 Effect Nitrogen cylinder pressure reducer DIN 477-1, 0 - 10 bar according to DIN EN ISO 2503, Class 3, two-stage design, TÜV type-tested in accordance with Pressure Equipment Directive 97/23/EC, with pre-pressure compensation for constant outlet pressure with falling pre-pressure, with safety pressure gauges according to DIN EN ISO 5171, with shut-off valve. Maximum inlet pressure: 200 bar. Output pressure: 0 - 10 bar adjustable. Maximum output: 48 Nm?/h at 10 bar outlet pressure. Inlet: W24.32x1/14RHf U-nut according to DIN 477-1 No. 10. Outlet: G 1/4 RHk x 6mm nozzle according to DIN EN 560. Inlet pressure gauge: 0 - 315 / 200 bar. Outlet pressure gauge: 0 - 16/ 10 bar Width x Height x Depth: 240 x 190 x 75 mm This cylinder pressure reducer is available in the following versions: Gas purity/membrane: Standard: - for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge): - for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard: - hose nozzle G1/4" RHk x 6mm Options (surcharge): Item number Gas purity Outlet connection 203200 for technical gases up to 4.5, with standard membrane Hose nozzle G1/4" RHk x 6mm 203200-812 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" RHk x 9mm 203200-800 for technical gases up to 4.5, with standard membrane external thread G1/4" RHk according to EN560 203200-870 for technical gases up to 4.5, with standard membrane external thread G3/8" RHk according to EN 560 203200-838 for technical gases up to 4.5, with standard membrane external thread G1/2" RHk according to EN 560 203200-6M for technical gases up to 4.5, with standard membrane compression fitting VA 6mm 203200-8M for technical gases up to 4.5, with standard membrane compression fitting VA 8mm 203200-10M for technical gases up to 4.5, with standard membrane compression fitting VA 10mm 203200-12M for technical gases up to 4.5, with standard membrane compression fitting VA 12mm 203200-2 for technical gases up to 4.5, with standard membrane compression fitting VA 1/8" 203200-4 for technical gases up to 4.5, with standard membrane compression fitting VA 1/4" 203200-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) hose nozzle G1/4" RHk x 6mm 203200-MM-812 for pure gases up to 5.0, with metal membrane SS321 (1.4541) hose nozzle G3/8" RHk x 9mm 203200-MM-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/4" RHk according to EN560 203200-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" RHk according to EN 560 203200-MM-838 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/2" RHk according to EN 560 203200-MM-6M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 203200-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 203200-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 203200-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 203200-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/8" 203200-MM-4 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/4"

Application:

Automotive Industry
Chemical Industry
Cutting
Manufacturing Industry
Petrochemical Industry
Pharmaceutical Industry
Research & Development
Welding

Blow-off valve:

Class (purpose):

Technical gases

Flow rate:

48 Nm³/h

Flowmeter:

Gas Quality:

up to 4.5

HP Gauge:

HP gauge scale:

0 to 315 Bar

Inlet Connection:

DIN 477-1 No. 6 (W 21.8 x 1/14 RH

Inlet pressure:

200 Bar

LP Gauge:

LP gauge scale:

0 to 16 Bar

Material:

Brass

Non-return valve:

Outlet Connection:

G 1/4 RH x 6 mm (hose grommet)

Outlet pressure:

10 Bar

Product type:

Cylinder regulators

Purge valve:

Regulation Type:

Double stage

Relief valve:

Shut off valve:

Solenoid valve:

Type of Gas:

Argon (Ar)

W (Width) x H (Height) x D (Depth):

240x190x75mm.

Outlet pressure:

10Bar

CODE	Gas Quality	Outlet pressure	Type of Gas	Inlet Connection	Outlet Connection	Inlet pressure	Material	HP gauge scale	Price
226226-022	up to 5.0	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
226226-020	up to 5.0	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
226226-018	up to 5.0	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
226226-016	up to 5.0	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226226-014	up to 5.0	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226226-012	up to 5.0	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
226226-010	up to 4.5	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
226226-008	up to 4.5	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
226226-006	up to 4.5	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
226226-004	up to 4.5	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226226-002	up to 4.5	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
226200-022	up to 5.0	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
226200-020	up to 5.0	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
226200-018	up to 5.0	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
226200-016	up to 5.0	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226200-014	up to 5.0	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
226200-012	up to 5.0	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
226200-010	up to 4.5	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
226200-008	up to 4.5	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
226200-006	up to 4.5	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
226200-004	up to 4.5	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226200-002	up to 4.5	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/4" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208200-021	up to 5.0	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
208200-019	up to 5.0	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
208200-017	up to 5.0	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
208200-015	up to 5.0	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208200-013	up to 5.0	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G1/4" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208200-011	up to 4.5	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
208200-009	up to 4.5	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
208200-007	up to 4.5	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
208200-005	up to 4.5	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208200-003	up to 4.5	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
208200-001	up to 4.5	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
204200-019	up to 5.0	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
204200-017	up to 5.0	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
204200-015	up to 5.0	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
204200-013	up to 5.0	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G3/8" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204200-011	up to 5.0	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	G 3/8 LH x 9 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
204200-009	up to 4.5	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
204200-007	up to 4.5	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
204200-005	up to 4.5	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
204200-003	up to 4.5	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G3/8" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204200-001	up to 4.5	10	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	G 3/8 LH x 9 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
203200-022	up to 5.0	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
203200-020	up to 5.0	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
203200-018	up to 5.0	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
203200-016	up to 5.0	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203200-014	up to 5.0	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
203200-012	up to 5.0	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
203200-010	up to 4.5	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
203200-008	up to 4.5	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
203200-006	up to 4.5	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
203200-004	up to 4.5	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203200-003	up to 4.5	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
203200-001	up to 4.5	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
203200-002	up to 4.5	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	External thread G1/4" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226226-021	up to 5.0	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
226226-019	up to 5.0	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
226226-017	up to 5.0	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
226226-015	up to 5.0	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226226-013	up to 5.0	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
226226-011	up to 4.5	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
226226-009	up to 4.5	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
226226-007	up to 4.5	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
226226-005	up to 4.5	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226226-003	up to 4.5	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226226-001	up to 4.5	10	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
226200-021	up to 5.0	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
226200-019	up to 5.0	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
226200-017	up to 5.0	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
226200-015	up to 5.0	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226200-013	up to 5.0	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/4" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226200-011	up to 4.5	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
226200-009	up to 4.5	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
226200-007	up to 4.5	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
226200-005	up to 4.5	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
226200-003	up to 4.5	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
226200-001	up to 4.5	10	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
208200-022	up to 5.0	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
208200-020	up to 5.0	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
208200-018	up to 5.0	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
208200-016	up to 5.0	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208200-014	up to 5.0	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
208200-012	up to 5.0	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
208200-010	up to 4.5	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
208200-008	up to 4.5	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
208200-006	up to 4.5	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
208200-004	up to 4.5	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208200-002	up to 4.5	10	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G1/4" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203200-019	up to 5.0	40	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 18 mm	200	Brass	0 to 315	Contact us for a price
203200-015	up to 5.0	40	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression ring fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
203200-009	up to 4.5	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	G 1/2 RHak (according to EN 560)	200	Brass	0 to 315	Contact us for a price
203200-007	up to 4.5	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203200-005	up to 4.5	10	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting 15 mm	200	Brass	0 to 315	Contact us for a price
