Cylinder regulator 0-20 bar Vulkan F20/200 Effect

Vulkan

Write a review

Gas Quality:

Outlet pressure:

Bar

Type of Gas:

Inlet Connection:

Outlet Connection:

Inlet pressure:

Bar

Material:

HP gauge scale:

Bar

Ask a question

CODE: 206300-021

Description
Features
View all variations as list

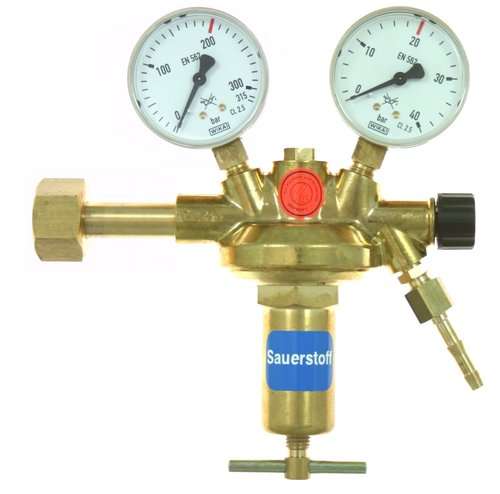

Vulkan F20/200 Effect Oxygen cylinder pressure reducer DIN 477-1, 0-20 bar according to ISO 2503, Class 5, single-stage design, burnout tested according to ISO 2503, with pre-pressure compensation for constant outlet pressure with falling pre-pressure, with safety gauges according to DIN EN ISO 5171, with shut-off valve. Maximum inlet pressure: 200 bar. Output pressure: 0-20 bar adjustable. Maximum output: 75 Nm³/h at 20 bar outlet pressure. Inlet: G3/4RH U-nut according to DIN 477-1 No. 9. Outlet (optional special outlet): G1/4RHk x 6 mm nozzle according to EN 560. Inlet gauge: 0-315/200 bar. Outlet gauge: 0-40/20 bar. Width x Height x Depth: 210 x 210 x 75 mm. This cylinder pressure reducer is available in the following versions, among others: Gas purity/diaphragm: Standard: - for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge): - for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard: - G1/4 RHk x 6 mm nozzle according to EN 560 Options (surcharge): Item number Gas purity Outlet connection 208300 for technical gases up to 4.5, with standard membrane Hose nozzle G1/4" RHk x 6mm 208300-812 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" RHk x 9mm 208300-800 for technical gases up to 4.5, with standard membrane External thread G1/4" RHk according to EN560 208300-870 for technical gases up to 4.5, with standard membrane, external thread G3/8" RHk according to EN 560 208300-838 for technical gases up to 4.5, with standard membrane, external thread G1/2" RHk according to EN 560 208300-6M for technical gases up to 4.5, with standard membrane, compression fitting VA 6mm 208300-8M for technical gases up to 4.5, with standard membrane, compression fitting VA 8mm 208300-10M for technical gases up to 4.5, with standard membrane, compression fitting VA 10mm 208300-12M for technical gases up to 4.5, with standard membrane, compression fitting VA 12mm 208300-2 for technical gases up to 4.5, with standard membrane Compression fitting VA 1/8" 208300-4 for technical gases up to 4.5, with standard membrane Compression fitting VA 1/4" 208300-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) Hose nozzle G1/4" RHk x 6mm 208300-MM-812 for pure gases up to 5.0, with metal membrane SS321 (1.4541) Hose nozzle G3/8" RHk x 9mm 208300-MM-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/4" RHk according to EN560 208300-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" RHk according to EN 560 208300-MM-838 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/2" RHk according to EN 560 208300-MM-6M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 208300-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 208300-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 208300-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 208300-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/8" 208300-MM-4 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/4"

Application:

Automotive Industry
Chemical Industry
Cutting
Manufacturing Industry
Petrochemical Industry
Pharmaceutical Industry
Research & Development
Welding

Blow-off valve:

Class (purpose):

Technical gases

Flow rate:

75 Nm³/h

Flowmeter:

Gas Quality:

up to 5.0

HP Gauge:

HP gauge scale:

0 to 315 Bar

Inlet Connection:

DIN 477-1 No. 6 (W 21.8 x 1/14 RH

Inlet pressure:

200 Bar

LP Gauge:

LP gauge scale:

0 to 40 Bar

Material:

Brass

Non-return valve:

Outlet Connection:

Compression fitting front 1/8"

Outlet pressure:

20 Bar

Product type:

Cylinder regulators

Purge valve:

Regulation Type:

Single stage

Relief valve:

Shut off valve:

Solenoid valve:

Type of Gas:

Argon (Ar)

W (Width) x H (Height) x D (Depth):

210x210x75mm.

Outlet pressure:

20Bar

CODE	Gas Quality	Outlet pressure	Type of Gas	Inlet Connection	Outlet Connection	Inlet pressure	Material	HP gauge scale	Price
206300-021	up to 5.0	20	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
206300-019	up to 5.0	20	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
206300-017	up to 5.0	20	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
206300-015	up to 5.0	20	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
206300-013	up to 5.0	20	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
206300-011	up to 4.5	20	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
206300-009	up to 4.5	20	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
206300-007	up to 4.5	20	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
206300-005	up to 4.5	20	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
206300-003	up to 4.5	20	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
206300-001	up to 4.5	20	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
204320-019	up to 5.0	20	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
204320-017	up to 5.0	20	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
204320-015	up to 5.0	20	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
204320-013	up to 5.0	20	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G3/8" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204320-011	up to 5.0	20	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	G 3/8 LH x 9 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
204320-009	up to 4.5	20	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
204320-007	up to 4.5	20	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
204320-005	up to 4.5	20	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
204320-003	up to 4.5	20	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G3/8" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204320-001	up to 4.5	20	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	G 3/8 LH x 9 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
203380-019	up to 5.0	20	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
203380-017	up to 5.0	20	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
203380-015	up to 5.0	20	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
203380-013	up to 5.0	20	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	External thread G3/8" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203380-011	up to 5.0	20	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	G 3/8 LH x 9 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
203380-009	up to 4.5	20	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
203380-007	up to 4.5	20	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
203380-005	up to 4.5	20	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
203380-003	up to 4.5	20	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	External thread G3/8" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203380-001	up to 4.5	20	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	G 3/8 LH x 9 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
207300-021	up to 5.0	20	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
207300-019	up to 5.0	20	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
207300-017	up to 5.0	20	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
207300-015	up to 5.0	20	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
207300-013	up to 5.0	20	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
207300-011	up to 4.5	20	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
207300-009	up to 4.5	20	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
207300-007	up to 4.5	20	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
207300-005	up to 4.5	20	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
207300-003	up to 4.5	20	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
207300-001	up to 4.5	20	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
204380-019	up to 5.0	20	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
204380-017	up to 5.0	20	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
204380-015	up to 5.0	20	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
204380-013	up to 5.0	20	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G3/8" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204380-011	up to 5.0	20	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	G 3/8 LH x 9 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
204380-009	up to 4.5	20	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
204380-007	up to 4.5	20	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
204380-005	up to 4.5	20	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
204380-003	up to 4.5	20	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G3/8" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204380-001	up to 4.5	20	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	G 3/8 LH x 9 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
204300-019	up to 5.0	20	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
204300-017	up to 5.0	20	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
204300-015	up to 5.0	20	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
204300-013	up to 5.0	20	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G3/8" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204300-011	up to 5.0	20	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	G 3/8 LH x 9 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
204300-009	up to 4.5	20	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
204300-007	up to 4.5	20	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
204300-005	up to 4.5	20	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
204300-003	up to 4.5	20	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G3/8" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204300-001	up to 4.5	20	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	G 3/8 LH x 9 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
203300-021	up to 5.0	20	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
203300-019	up to 5.0	20	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
203300-017	up to 5.0	20	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
203300-015	up to 5.0	20	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203300-013	up to 5.0	20	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
203300-011	up to 4.5	20	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
203300-009	up to 4.5	20	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
203300-007	up to 4.5	20	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
203300-005	up to 4.5	20	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203300-003	up to 4.5	20	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203300-001	up to 4.5	20	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
206326-021	up to 5.0	20	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
206326-019	up to 5.0	20	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
206326-017	up to 5.0	20	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
206326-015	up to 5.0	20	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
206326-013	up to 5.0	20	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
206326-011	up to 4.5	20	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
206326-009	up to 4.5	20	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
206326-007	up to 4.5	20	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
206326-005	up to 4.5	20	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
206326-003	up to 4.5	20	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
206326-001	up to 4.5	20	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
208300-021	up to 5.0	20	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
208300-019	up to 5.0	20	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
208300-017	up to 5.0	20	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
208300-015	up to 5.0	20	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208300-013	up to 5.0	20	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
208300-011	up to 4.5	20	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
208300-009	up to 4.5	20	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
208300-007	up to 4.5	20	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
208300-005	up to 4.5	20	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208300-003	up to 4.5	20	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208300-001	up to 4.5	20	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
206300-022	up to 5.0	20	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
206300-020	up to 5.0	20	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
206300-018	up to 5.0	20	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
206300-016	up to 5.0	20	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
206300-014	up to 5.0	20	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
206300-012	up to 5.0	20	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
206300-010	up to 4.5	20	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
206300-008	up to 4.5	20	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
206300-006	up to 4.5	20	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
206300-004	up to 4.5	20	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
206300-002	up to 4.5	20	Argon (Ar)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
204320-020	up to 5.0	20	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
204320-018	up to 5.0	20	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
204320-016	up to 5.0	20	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
204320-014	up to 5.0	20	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G1/2" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204320-012	up to 5.0	20	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Hose nozzle G 3/8" LHk x 6 mm	200	Brass	0 to 315	Contact us for a price
204320-010	up to 4.5	20	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
204320-008	up to 4.5	20	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
204320-006	up to 4.5	20	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
204320-004	up to 4.5	20	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G1/2" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204320-002	up to 4.5	20	Methane (CH4)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Hose nozzle G 3/8" LHk x 6 mm	200	Brass	0 to 315	Contact us for a price
203380-020	up to 5.0	20	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
203380-018	up to 5.0	20	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
203380-016	up to 5.0	20	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
203380-014	up to 5.0	20	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	External thread G1/2" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203380-012	up to 5.0	20	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Hose nozzle G 3/8" LHk x 6 mm	200	Brass	0 to 315	Contact us for a price
203380-010	up to 4.5	20	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
203380-008	up to 4.5	20	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
203380-006	up to 4.5	20	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
203380-004	up to 4.5	20	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	External thread G1/2" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203380-002	up to 4.5	20	Tracer gases (mixture)	DIN 477-1 No. 14 (M 19 x 1.5 LH)	Hose nozzle G 3/8" LHk x 6 mm	200	Brass	0 to 315	Contact us for a price
207300-022	up to 5.0	20	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
207300-020	up to 5.0	20	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
207300-018	up to 5.0	20	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
207300-016	up to 5.0	20	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
207300-014	up to 5.0	20	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
207300-012	up to 5.0	20	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
207300-010	up to 4.5	20	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
207300-008	up to 4.5	20	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
207300-006	up to 4.5	20	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
207300-004	up to 4.5	20	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
207300-002	up to 4.5	20	Compressed Air (mixture)	DIN 477-1 No. 13 (G 5/8 RH)	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
204380-020	up to 5.0	20	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
204380-018	up to 5.0	20	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
204380-016	up to 5.0	20	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
204380-014	up to 5.0	20	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G1/2" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204380-012	up to 5.0	20	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Hose nozzle G 3/8" LHk x 6 mm	200	Brass	0 to 315	Contact us for a price
204380-010	up to 4.5	20	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
204380-008	up to 4.5	20	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
204380-006	up to 4.5	20	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
204380-004	up to 4.5	20	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G1/2" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204380-002	up to 4.5	20	Forming gases (mixture)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Hose nozzle G 3/8" LHk x 6 mm	200	Brass	0 to 315	Contact us for a price
204300-020	up to 5.0	20	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
204300-018	up to 5.0	20	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
204300-016	up to 5.0	20	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
204300-014	up to 5.0	20	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G1/2" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204300-012	up to 5.0	20	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Hose nozzle G 3/8" LHk x 6 mm	200	Brass	0 to 315	Contact us for a price
204300-010	up to 4.5	20	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
204300-008	up to 4.5	20	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
204300-006	up to 4.5	20	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
204300-004	up to 4.5	20	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	External thread G1/2" LHk according to EN 560	200	Brass	0 to 315	Contact us for a price
204300-002	up to 4.5	20	Hydrogen (H2)	DIN 477-1 No. 1 (W 21.80 x 1/14 LH)	Hose nozzle G 3/8" LHk x 6 mm	200	Brass	0 to 315	Contact us for a price
203300-022	up to 5.0	20	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
203300-020	up to 5.0	20	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
203300-018	up to 5.0	20	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
203300-016	up to 5.0	20	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203300-014	up to 5.0	20	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203300-012	up to 5.0	20	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
203300-010	up to 4.5	20	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
203300-008	up to 4.5	20	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
203300-006	up to 4.5	20	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
203300-004	up to 4.5	20	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
203300-002	up to 4.5	20	Nitrogen (N2)	DIN 477-1 No. 10 (W 24.32 x 1/14 RH)	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
206326-022	up to 5.0	20	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
206326-020	up to 5.0	20	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
206326-018	up to 5.0	20	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
206326-016	up to 5.0	20	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
206326-014	up to 5.0	20	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
206326-012	up to 5.0	20	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
206326-010	up to 4.5	20	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
206326-008	up to 4.5	20	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
206326-006	up to 4.5	20	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
206326-004	up to 4.5	20	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
206326-002	up to 4.5	20	Helium (He)	DIN 477-1 No. 6 (W 21.8 x 1/14 RH	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price
208300-022	up to 5.0	20	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression ring fitting front 1/4"	200	Brass	0 to 315	Contact us for a price
208300-020	up to 5.0	20	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 12 mm	200	Brass	0 to 315	Contact us for a price
208300-018	up to 5.0	20	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 8 mm	200	Brass	0 to 315	Contact us for a price
208300-016	up to 5.0	20	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G1/2" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208300-014	up to 5.0	20	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G1/4" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208300-012	up to 5.0	20	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	G 1/4 RH x 6 mm (hose grommet)	200	Brass	0 to 315	Contact us for a price
208300-010	up to 4.5	20	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 1/8"	200	Brass	0 to 315	Contact us for a price
208300-008	up to 4.5	20	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 10 mm	200	Brass	0 to 315	Contact us for a price
208300-006	up to 4.5	20	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Compression fitting front 6 mm	200	Brass	0 to 315	Contact us for a price
208300-004	up to 4.5	20	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	External thread G3/8" RHk according to EN 560	200	Brass	0 to 315	Contact us for a price
208300-002	up to 4.5	20	Oxygen (O2)	DIN 477-1 No. 9 (G 3/4 RH)	Hose nozzle G3/8" RHk x 9 mm	200	Brass	0 to 315	Contact us for a price

Similar products

Cylinder regulator 0-1,5 bar Vulkan F15/2 200 Effect

Gas Quality: up to 4.5, up to 5.0

Outlet Connection: Compression fitting front 1/8", Compression fitting front 6 mm, Compression fitting front 8 mm, Compression fitting front 10 mm, Compression fitting front 12 mm, Compression ring fitting front 1/4", External thread G1/2" RHk according to EN 560, External thread G1/4" RHk according to EN 560, External thread G3/8" RHk according to EN 560, G 1/4 RH x 6 mm (hose grommet), Hose nozzle G3/8" RHk x 9 mm

Quick view
