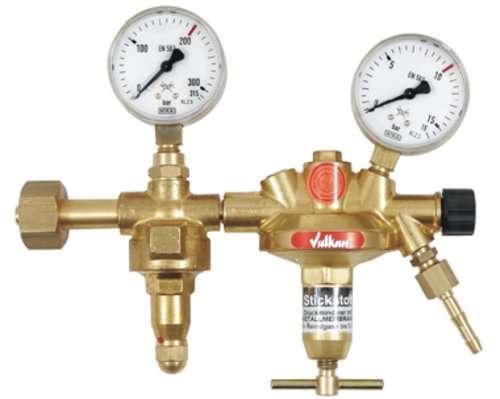

Cylinder regulator 0-10 bar Vulkan F10/2 200 Effect

Vulkan
Write a review
Contact us for a price
Bar
Bar
Bar
Ask a question
204820-006

Cylinder pressure reducer Vulkan F10/2 200 Effect test gas DIN 477-1, 0 - 10 bar according to DIN EN ISO 2503, Class 3, two-stage design, with safety pressure gauges according to DIN EN ISO 5171, with shut-off valve. Maximum inlet pressure: 200 bar. Output pressure: 0 - 10 bar adjustable. Maximum output: 48 Nm³/h compressed air at 10 bar outlet pressure. Inlet: M19 x 1.5 LH U-nut according to DIN 477. Outlet: G3/8LHk x 9mm nozzle according to DIN EN 560. Inlet pressure gauge: 0 - 315 / 200 bar. Outlet pressure gauge: 0 - 16 / 10 bar. Width x Height x Depth: 240 x 190 x 75 mm. This cylinder pressure reducer is available in the following versions, among others: Gas purity/membrane: Standard:- for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge):- for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard:- hose nozzle G3/8" LHk x 9mm Options (surcharge): Order numberGas purity/membraneOutlet screw connection 203820 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" LHk x 9mm 203820-815 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" LHk x 6mm 203820-814 for technical gases up to 4.5, with standard membrane External thread G3/8" LHk according to EN 560 203820-830 for technical gases up to 4.5, with standard membrane external thread G1/2" LHk according to EN 560 203820-6M for technical gases up to 4.5, with standard membrane compression fitting VA 6mm 203820-8M for technical gases up to 4.5, with standard membrane compression fitting VA 8mm 203820-10M for technical gases up to 4.5, with standard membrane compression fitting VA 10mm 203820-12M for technical gases up to 4.5, with standard membrane compression fitting VA 12mm 203820-2 for technical gases up to 4.5, with standard membrane compression fitting VA 1/8" 203820-4 for technical gases up to 4.5, with standard membrane compression fitting VA 1/4" 203820-MM-815 for pure Gases up to 5.0, with metal membrane SS321 (1.4541) hose nozzle G3/8" LHk x 6mm 203820-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) hose nozzle G3/8" LHk x 9mm 203820-MM-814 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" LHk according to EN 560 203820-MM-830 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/2" LHk according to EN 560 203820-MM-6M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 203820-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 203820-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 203820-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 203820-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/8" 203820-MM-4 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/4"

Application:
  • Automotive Industry
  • Chemical Industry
  • Cutting
  • Manufacturing Industry
  • Petrochemical Industry
  • Pharmaceutical Industry
  • Research & Development
  • Welding
Blow-off valve:
Flow rate:
48 Nm³/h
Flowmeter:
Gas Quality:
up to 4.5
HP Gauge:
HP gauge scale:
0 to 315 Bar
Inlet Connection:
DIN 477-1 No. 1 (W 21.80 x 1/14 LH)
Inlet pressure:
200 Bar
LP Gauge:
LP gauge scale:
0 to 16 Bar
Material:
Brass
Non-return valve:
Outlet Connection:
Compression fitting front 8 mm
Outlet pressure:
10 Bar
Product type:
Cylinder regulators
Purge valve:
Regulation Type:
Double stage
Relief valve:
Shut off valve:
Solenoid valve:
Type of Gas:
Forming gases (mixture)
W (Width) x H (Height) x D (Depth):
240x190x75mm.
Outlet pressure:
10Bar
  CODE Gas Quality Outlet pressure Type of Gas Inlet Connection Outlet Connection Inlet pressure Material HP gauge scale Availability Price
207200-022
up to 5.0 10 Compressed Air (mixture) DIN 477-1 No. 13 (G 5/8 RH) Compression ring fitting front 1/4" 200 Brass 0 to 315
Contact us for a price
207200-020
up to 5.0 10 Compressed Air (mixture) DIN 477-1 No. 13 (G 5/8 RH) Compression fitting front 12 mm 200 Brass 0 to 315
Contact us for a price
207200-018
up to 5.0 10 Compressed Air (mixture) DIN 477-1 No. 13 (G 5/8 RH) Compression fitting front 8 mm 200 Brass 0 to 315
Contact us for a price
207200-016
up to 5.0 10 Compressed Air (mixture) DIN 477-1 No. 13 (G 5/8 RH) External thread G1/2" RHk according to EN 560 200 Brass 0 to 315
Contact us for a price
207200-014
up to 5.0 10 Compressed Air (mixture) DIN 477-1 No. 13 (G 5/8 RH) External thread G1/4" RHk according to EN 560 200 Brass 0 to 315
Contact us for a price
207200-012
up to 5.0 10 Compressed Air (mixture) DIN 477-1 No. 13 (G 5/8 RH) Hose nozzle G1/4" RHk x 6 mm 200 Brass 0 to 315
Contact us for a price
207200-010
up to 4.5 10 Compressed Air (mixture) DIN 477-1 No. 13 (G 5/8 RH) Compression fitting front 1/8" 200 Brass 0 to 315
Contact us for a price
207200-008
up to 4.5 10 Compressed Air (mixture) DIN 477-1 No. 13 (G 5/8 RH) Compression fitting front 10 mm 200 Brass 0 to 315
Contact us for a price
207200-006
up to 4.5 10 Compressed Air (mixture) DIN 477-1 No. 13 (G 5/8 RH) Compression fitting front 6 mm 200 Brass 0 to 315
Contact us for a price
207200-004
up to 4.5 10 Compressed Air (mixture) DIN 477-1 No. 13 (G 5/8 RH) External thread G3/8" RHk according to EN 560 200 Brass 0 to 315
Contact us for a price
207200-002
up to 4.5 10 Compressed Air (mixture) DIN 477-1 No. 13 (G 5/8 RH) Hose nozzle G3/8" RHk x 9 mm 200 Brass 0 to 315
Contact us for a price
204820-020
up to 5.0 10 Forming gases (mixture) DIN 477-1 No. 1 (W 21.80 x 1/14 LH) Compression fitting front 1/4" 200 Brass 0 to 315
Contact us for a price
204820-018
up to 5.0 10 Forming gases (mixture) DIN 477-1 No. 1 (W 21.80 x 1/14 LH) Compression fitting front 12 mm 200 Brass 0 to 315
Contact us for a price
204820-016
up to 5.0 10 Forming gases (mixture) DIN 477-1 No. 1 (W 21.80 x 1/14 LH) Compression fitting front 8 mm 200 Brass 0 to 315
Contact us for a price
204820-014
up to 5.0 10 Forming gases (mixture) DIN 477-1 No. 1 (W 21.80 x 1/14 LH) External thread G1/2" LHk according to EN 560 200 Brass 0 to 315
Contact us for a price
204820-012
up to 5.0 10 Forming gases (mixture) DIN 477-1 No. 1 (W 21.80 x 1/14 LH) Hose nozzle G 3/8" LHk x 6 mm 200 Brass 0 to 315
Contact us for a price
204820-010
up to 4.5 10 Forming gases (mixture) DIN 477-1 No. 1 (W 21.80 x 1/14 LH) Compression fitting front 1/4" 200 Brass 0 to 315
Contact us for a price
204820-008
up to 4.5 10 Forming gases (mixture) DIN 477-1 No. 1 (W 21.80 x 1/14 LH) Compression fitting front 12 mm 200 Brass 0 to 315
Contact us for a price
204820-006
up to 4.5 10 Forming gases (mixture) DIN 477-1 No. 1 (W 21.80 x 1/14 LH) Compression fitting front 8 mm 200 Brass 0 to 315
Contact us for a price
204820-004
up to 4.5 10 Forming gases (mixture) DIN 477-1 No. 1 (W 21.80 x 1/14 LH) External thread G1/2" LHk according to EN 560 200 Brass 0 to 315
Contact us for a price
204820-002
up to 4.5 10 Forming gases (mixture) DIN 477-1 No. 1 (W 21.80 x 1/14 LH) Hose nozzle G 3/8" LHk x 6 mm 200 Brass 0 to 315
Contact us for a price
203820-019
up to 5.0 10 Tracer gases (mixture) DIN 477-1 No. 14 (M 19 x 1.5 LH) Compression fitting front 1/8" 200 Brass 0 to 315
Contact us for a price
203820-017
up to 5.0 10 Tracer gases (mixture) DIN 477-1 No. 14 (M 19 x 1.5 LH) Compression fitting front 10 mm 200 Brass 0 to 315
Contact us for a price
203820-015
up to 5.0 10 Tracer gases (mixture) DIN 477-1 No. 14 (M 19 x 1.5 LH) Compression fitting front 6 mm 200 Brass 0 to 315
Contact us for a price
203820-013
up to 5.0 10 Tracer gases (mixture) DIN 477-1 No. 14 (M 19 x 1.5 LH) External thread G3/8" LHk according to EN 560 200 Brass 0 to 315
Contact us for a price
203820-011
up to 5.0 10 Tracer gases (mixture) DIN 477-1 No. 14 (M 19 x 1.5 LH) Hose nozzle G3/8" LHk x 9 mm 200 Brass 0 to 315
Contact us for a price
203820-009
up to 4.5 10 Tracer gases (mixture) DIN 477-1 No. 14 (M 19 x 1.5 LH) Compression fitting front 1/8" 200 Brass 0 to 315
Contact us for a price
203820-007
up to 4.5 10 Tracer gases (mixture) DIN 477-1 No. 14 (M 19 x 1.5 LH) Compression fitting front 10 mm 200 Brass 0 to 315
Contact us for a price
203820-005
up to 4.5 10 Tracer gases (mixture) DIN 477-1 No. 14 (M 19 x 1.5 LH) Compression fitting front 6 mm 200 Brass 0 to 315
Contact us for a price
203820-003
up to 4.5 10 Tracer gases (mixture) DIN 477-1 No. 14 (M 19 x 1.5 LH) External thread G3/8" LHk according to EN 560 200 Brass 0 to 315
Contact us for a price
203820-001
up to 4.5 10 Tracer gases (mixture) DIN 477-1 No. 14 (M 19 x 1.5 LH) Hose nozzle G3/8" LHk x 9 mm 200 Brass 0 to 315
Contact us for a price
207200-021
up to 5.0 10 Compressed Air (mixture) DIN 477-1 No. 13 (G 5/8 RH) Compression fitting front 1/8" 200 Brass 0 to 315
Contact us for a price
207200-019
up to 5.0 10 Compressed Air (mixture) DIN 477-1 No. 13 (G 5/8 RH) Compression fitting front 10 mm 200 Brass 0 to 315
Contact us for a price
207200-017
up to 5.0 10 Compressed Air (mixture) DIN 477-1 No. 13 (G 5/8 RH) Compression fitting front 6 mm 200 Brass 0 to 315
Contact us for a price
207200-015
up to 5.0 10 Compressed Air (mixture) DIN 477-1 No. 13 (G 5/8 RH) External thread G3/8" RHk according to EN 560 200 Brass 0 to 315
Contact us for a price
207200-013
up to 5.0 10 Compressed Air (mixture) DIN 477-1 No. 13 (G 5/8 RH) Hose nozzle G3/8" RHk x 9 mm 200 Brass 0 to 315
Contact us for a price
207200-011
up to 4.5 10 Compressed Air (mixture) DIN 477-1 No. 13 (G 5/8 RH) Compression ring fitting front 1/4" 200 Brass 0 to 315
Contact us for a price
207200-009
up to 4.5 10 Compressed Air (mixture) DIN 477-1 No. 13 (G 5/8 RH) Compression fitting front 12 mm 200 Brass 0 to 315
Contact us for a price
207200-007
up to 4.5 10 Compressed Air (mixture) DIN 477-1 No. 13 (G 5/8 RH) Compression fitting front 8 mm 200 Brass 0 to 315
Contact us for a price
207200-005
up to 4.5 10 Compressed Air (mixture) DIN 477-1 No. 13 (G 5/8 RH) External thread G1/2" RHk according to EN 560 200 Brass 0 to 315
Contact us for a price
207200-003
up to 4.5 10 Compressed Air (mixture) DIN 477-1 No. 13 (G 5/8 RH) External thread G1/4" RHk according to EN 560 200 Brass 0 to 315
Contact us for a price
207200-001
up to 4.5 10 Compressed Air (mixture) DIN 477-1 No. 13 (G 5/8 RH) Hose nozzle G1/4" RHk x 6 mm 200 Brass 0 to 315
Contact us for a price
204820-019
up to 5.0 10 Forming gases (mixture) DIN 477-1 No. 1 (W 21.80 x 1/14 LH) Compression fitting front 1/8" 200 Brass 0 to 315
Contact us for a price
204820-017
up to 5.0 10 Forming gases (mixture) DIN 477-1 No. 1 (W 21.80 x 1/14 LH) Compression fitting front 10 mm 200 Brass 0 to 315
Contact us for a price
204820-015
up to 5.0 10 Forming gases (mixture) DIN 477-1 No. 1 (W 21.80 x 1/14 LH) Compression fitting front 6 mm 200 Brass 0 to 315
Contact us for a price
204820-013
up to 5.0 10 Forming gases (mixture) DIN 477-1 No. 1 (W 21.80 x 1/14 LH) External thread G3/8" LHk according to EN 560 200 Brass 0 to 315
Contact us for a price
204820-011
up to 5.0 10 Forming gases (mixture) DIN 477-1 No. 1 (W 21.80 x 1/14 LH) Hose nozzle G3/8" LHk x 9 mm 200 Brass 0 to 315
Contact us for a price
204820-009
up to 4.5 10 Forming gases (mixture) DIN 477-1 No. 1 (W 21.80 x 1/14 LH) Compression fitting front 1/8" 200 Brass 0 to 315
Contact us for a price
204820-007
up to 4.5 10 Forming gases (mixture) DIN 477-1 No. 1 (W 21.80 x 1/14 LH) Compression fitting front 10 mm 200 Brass 0 to 315
Contact us for a price
204820-005
up to 4.5 10 Forming gases (mixture) DIN 477-1 No. 1 (W 21.80 x 1/14 LH) Compression fitting front 6 mm 200 Brass 0 to 315
Contact us for a price
204820-003
up to 4.5 10 Forming gases (mixture) DIN 477-1 No. 1 (W 21.80 x 1/14 LH) External thread G3/8" LHk according to EN 560 200 Brass 0 to 315
Contact us for a price
204820-001
up to 4.5 10 Forming gases (mixture) DIN 477-1 No. 1 (W 21.80 x 1/14 LH) Hose nozzle G3/8" LHk x 9 mm 200 Brass 0 to 315
Contact us for a price
