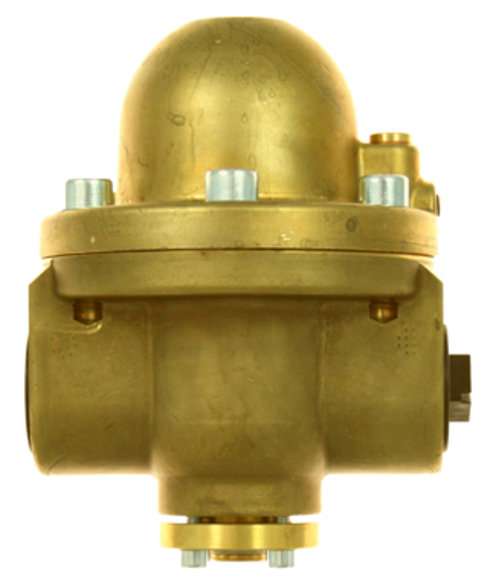

In-line dome pressure reducer Vulkan LD1 MD on both sides. G 1 RHi, single-stage design, without pressure gauge. Maximum inlet pressure: 100 bar (oxygen max. 40 bar!). Output pressure: 0.5 - 99 bar adjustable (oxygen 0.5 - 39 bar!). Maximum output: 2,400 Nm³/h (oxygen 2,100 Nm³/h). Inlet and outlet: G1RHi. Width x height x depth: 130 x 170 x 130 mm. Optionally also available with control pressure reducer. Available for various gas types (please select in the selection window!): Oxygen: Item No. 108535 (pe max. 40 bar pa 0.5 - 39 bar!). CO2/Argon: Item No. 106535. Helium: Item No. 10653526Nitrogen: Item no. 103535Hydrogen: Item no. 104535Compressed air: Item no. 107535
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Blow-off valve:
Class (purpose):
- Technical gases
Flow rate:
2400 Nm³/h
Flowmeter:
Gas Quality:
up to 4.5
HP Gauge:
Inlet Connection:
G 1 RHi
Inlet pressure:
100 Bar
LP Gauge:
Material:
Brass
Non-return valve:
Outlet Connection:
G 1 RHi
Outlet pressure:
100 Bar
Product type:
Line Pressure Regulators
Purge valve:
Regulation Type:
Single stage
Relief valve:
Shut off valve:
Solenoid valve:
Type of Gas:
Argon (Ar)
W (Width) x H (Height) x D (Depth):
130x170x130mm.
Outlet pressure:
100Bar
| CODE | Gas Quality | Outlet pressure | Type of Gas | Inlet Connection | Outlet Connection | Inlet pressure | Material | Availability | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
108535-007
|
|
Contact us for a price | ||||||||
|
108535-005
|
|
Contact us for a price | ||||||||
|
108535-003
|
|
Contact us for a price | ||||||||
|
108535-001
|
|
Contact us for a price | ||||||||
|
108535-006
|
|
Contact us for a price | ||||||||
|
108535-004
|
|
Contact us for a price | ||||||||
|
108535-002
|
|
Contact us for a price |
