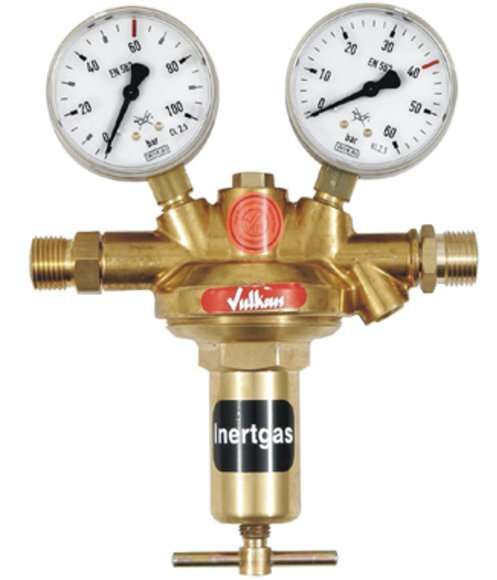

Line pressure regulator 0-40 bar Vulkan L40

Vulkan L40 line pressure reducer for compressed air G1/2RH both sides, 0 - 40 bar, based on DIN EN ISO 7291, single-stage design, with safety pressure gauges according to DIN EN ISO 5171. Maximum inlet pressure: 100 bar. Output pressure: 0 - 40 bar, adjustable. Maximum output: 90 Nm³/h at 40 bar outlet pressure. Inlet connection: G1/2RHak according to DIN EN 560. Outlet connection: G1/2RHak according to DIN EN 560. Inlet pressure gauge: 0 - 160 / 100 bar. Outlet pressure gauge: 0 - 60 / 40 bar. Width x Height x Depth: 165 x 210 x 75 mm. This line pressure reducer is available in the following versions, among others: Gas purity/diaphragm: Standard: - for technical gases up to a gas purity of 4.5 with Standard membrane Optional (surcharge): - for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard: - external thread G1/2" RHk on both sides according to EN 56 Options (surcharge): Order number Gas purity/Membrane Inlet/outlet screw connection 107523 for technical gases up to 4.5, with standard membrane, external thread G1/2" RHk on both sides according to EN 560 107523-6M-6M for technical gases up to 4.5, with standard membrane, compression fitting VA 6mm on both sides 107523-8M-8M for technical gases up to 4.5, with standard membrane, compression fitting VA 8mm on both sides 107523-10M-15M for technical gases up to 4.5, with standard membrane on both sides. Compression fitting VA 10mm 107523-12M-15M for technical gases up to 4.5, with standard membrane on both sides. Compression fitting VA 12mm 107523-15M-15M for technical gases up to 4.5, with standard membrane on both sides. Compression fitting VA 15mm 107523-18M-18M for technical gases up to 4.5, with standard membrane on both sides. Compression fitting VA 18mm 107523-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. External thread G1/2" RHk according to EN 560 107523-MM-6M-6M for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. Compression fitting VA 6mm 107523-MM-8M-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. Compression fitting VA 8mm 107523-MM-10M-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. Compression fitting VA 10mm 107523-MM-12M-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. Compression fitting VA 12mm 107523-MM-15M-15M for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. Compression fitting VA 15mm 107523-MM-18M-18M for pure gases up to 5.0, with metal membrane SS321 (1.4541) on both sides. Compression fitting VA 18 mm
