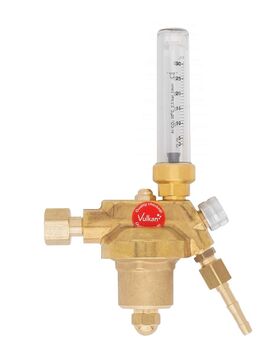

Point-of-use regulator with flowmeter Hydrogen 3-34 Nl/min Vulkan E10F

Tapping point pressure reducer Vulkan E10 F Flowmeter Hydrogen 3-34 Nl/min based on ISO 2503, Class 10, single-stage design, with flowmeter to control the exact flow rate in Nl/min for perfect gas shielded welding, max. inlet pressure: 20 bar, outlet pressure: 4.5 bar, fixed output: max. 3-34 Nl/min. Hydrogen adjustable. Inlet: G 3/8 LH U-nut according to DIN EN 560. Outlet: G 3/8 LH x 9mm nozzle according to DIN EN 560. Width x Height x Depth: 120 x 210 x 65 mm. This tapping point pressure reducer is available in the following versions, among others: Gas purity/membrane: Standard: - for technical gases up to a gas purity of 4.5 with standard membrane. Optional (surcharge): - for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541). Special outlet fitting: Standard: - hose nozzle G 3/8" LHk x 9mm. Options (surcharge): Order number: Gas purity/membrane. Outlet fitting 104906 for technical gases up to 4.5, with standard membrane. Hose nozzle G 3/8" LHk x 9mm. 104906-815 for technical gases up to 4.5, with standard membrane hose nozzle G3/8" LHk x 6mm 104906-814 for technical gases up to 4.5, with standard membrane external thread G3/8" LHk according to EN 560 104906-830 for technical gases up to 4.5, with standard membrane external thread G1/2" LHk according to EN 560 104906-6M for technical gases up to 4.5, with standard membrane compression fitting VA 6mm 104906-8M for technical gases up to 4.5, with standard membrane compression fitting VA 8mm 104906-10M for technical gases up to 4.5, with standard membrane compression fitting VA 10mm 104906-12M for technical gases up to 4.5, with Standard diaphragm compression fitting VA 12mm 104906-2 for technical gases up to 4.5, with standard diaphragm compression fitting VA 1/8" 104906-4 for technical gases up to 4.5, with standard diaphragm compression fitting VA 1/4" 104906-MM-815 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) hose nozzle G3/8" LHk x 6mm 104906-MM for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) hose nozzle G3/8" LHk x 9mm 104906-MM-814 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) external thread G3/8" LHk according to EN 560 104906-MM-830 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/2" LHk according to EN 560 104906-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 104906-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 104906-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 104906-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 104906-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/8" 104906-MM-4 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/4"
